Doming Resins

PU Dome Resin for Sticker

The 618AB-18 is a 1:1 mixing ratio, two-component polyurethane resin system designed for doming applications requiring crystal clarity and extreme durability. It cures efficiently at room temperature (24°C/48h) or accelerates under heat (60°C/2h), forming a flawless, glass-like finish that resists yellowing, scratches, and UV degradation.

Non-toxic (BPA & VOC Free)

Flexible, Curing Fast

Crystal Clear, Smooth Surface

No Smell

Download TDS

3:1 Soft Epoxy Doming Resin

The 308AB-3S1 is a 3:1 ratio two-component epoxy resin formulated for applications requiring flexible yet durable doming. Its soft-cure formulation (Shore Hardness 58A-72A) ensures impact resistance and bendability, making it ideal for dynamic or curved surfaces.

Non-toxic (BPA & VOC Free)

High Gloss

Highly Resistant

Smooth Surface

Download TDS

Suitable Products

Elevate any project with our durable resin! Ideal for branding, crafts, industrial labels, and personal décor—vibrant, waterproof, and endlessly versatile in 3D style.

How to Apply

Elevate any project with our durable resin! Ideal for branding, crafts, industrial labels, and personal décor—vibrant, waterproof, and endlessly versatile in 3D style.

01. Measure & Mix

Weigh Parts A and B precisely (e.g., 3:1), mix clockwise in a clean container for 2-3 minutes, scraping walls, then rest 3-5 minutes.

02. Degas (if needed)

For thick/bubbly adhesive, use a vacuum chamber (3-5 mins) or warm slightly (50°C heat gun) to remove bubbles.

03. Apply

Use a syringe (detail) or brush (large areas), apply evenly at 45° angle, covering surfaces without gaps.

01. Load & Preheat

Fill Parts A/B into labeled stainless steel tanks, enabling heaters (if temps <15°C) to maintain fluidity.

02. Purge & Test

Activate auto-degassing to clear air from lines/mixers, then test-dispense to confirm bubble-free flow.

03. Program & Run

Set dispensing paths via touchscreen, start automated cycles, and trigger self-cleaning post-job.

Latest Projects

Turn Your Challenges Into Real Solutions

Complex Design Sticker

Tiny PET Toy Sticker

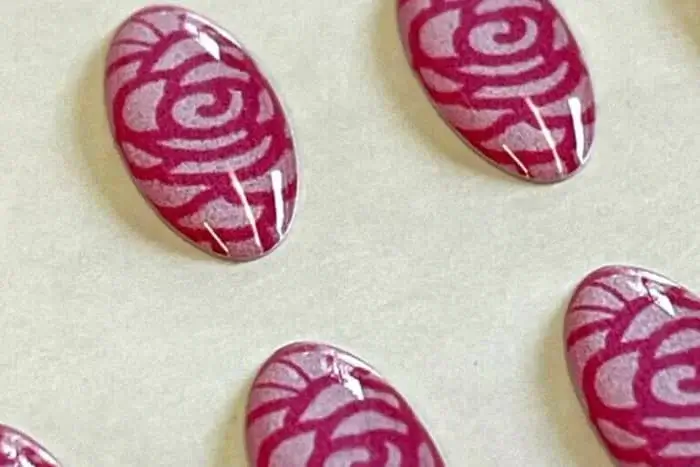

Simple Circle Sticker

Find More Projects

Epoxy Resin Handling & Storage FAQs

Q1: What are the basic safety requirements for the operating environment?
1. Ensure proper ventilation (install exhaust systems or keep windows/doors open).
2. Maintain a 3-meter distance from ignition sources (welding, sparks, open flames).
3. Use chemical-resistant mats and equip the area with fire extinguishers (dry powder/CO₂).
Q2: What to do if resin contacts the eyes?
1. Immediate action: Rinse eyes continuously with an eyewash station or clean water for 15 minutes, holding eyelids open.
2. Medical attention: Visit an ophthalmologist even if symptoms subside (bring the product’s MSDS sheet).
3. Avoid: Rubbing eyes or using chemical neutralizers.
Q3: How to handle skin contact with uncured resin?
1. Initial response:
  - Wipe off excess resin with gloves and clean paper/cloth.
  - Clean residue using a propylene glycol methyl ether-based cleaner.
2. Deep cleaning:
  - Wash thoroughly with warm soapy water for 2+ minutes.
  - Use olive oil to soften stubborn residue before rinsing.
3. Medical care: Apply hydrocortisone cream for redness/burning and seek medical help if irritation persists.
Q4: Why is pre-application testing mandatory?
1. Material validation: Verify adhesion to substrates (e.g., PVC/metal) via crosshatch adhesion test (≥4B rating).
2. Process calibration: Adjust mixing ratios and curing conditions (temperature tolerance: ±2°C).
3. Risk mitigation: Prevent batch defects (e.g., surface whitening) due to humidity >70%.
Q5: How to manage opened resin containers?
1. Sealing protocol:
  - Purge containers with nitrogen gas and seal with aluminum foil + PE film.
  - Use opened resin within 72 hours.
2. Quality checks:
  - Cloudy/Crystallized Part A: Reheat to 40°C (104°F) and stir.
  - Overly viscous Part B: Discard immediately.
Q6: What are the optimal storage conditions for unopened resin?
1. Environment:
  - Temperature: 15-25°C (59-77°F) with <±3°C daily fluctuation.
  - Humidity: <60% RH (use desiccant cabinets).
  - Light protection: Store in original amber containers (no transparent packaging).
2. Handling:
  - Stack containers >15 cm (6 in) above ground and >50 cm (20 in) from walls.
  - Use shock-absorbing pads for multi-layer storage.
Q7: How to dispose of resin waste safely?
1. Uncured waste:
  - Classify as HW13 hazardous waste (organic solvents) and store in leak-proof containers.
  - Dispose via licensed incineration facilities.
2. Cured waste:
  - Crush into non-hazardous construction filler materials (requires local environmental permits).
  - Never landfill or pour into drains.
