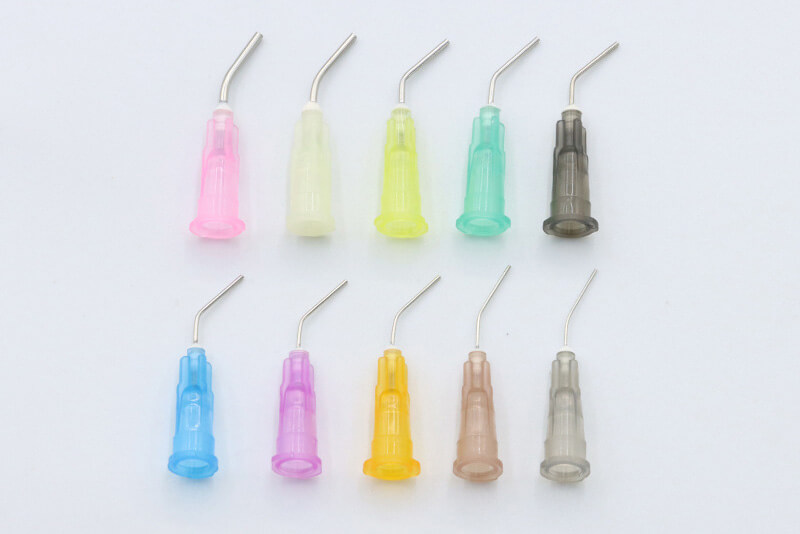

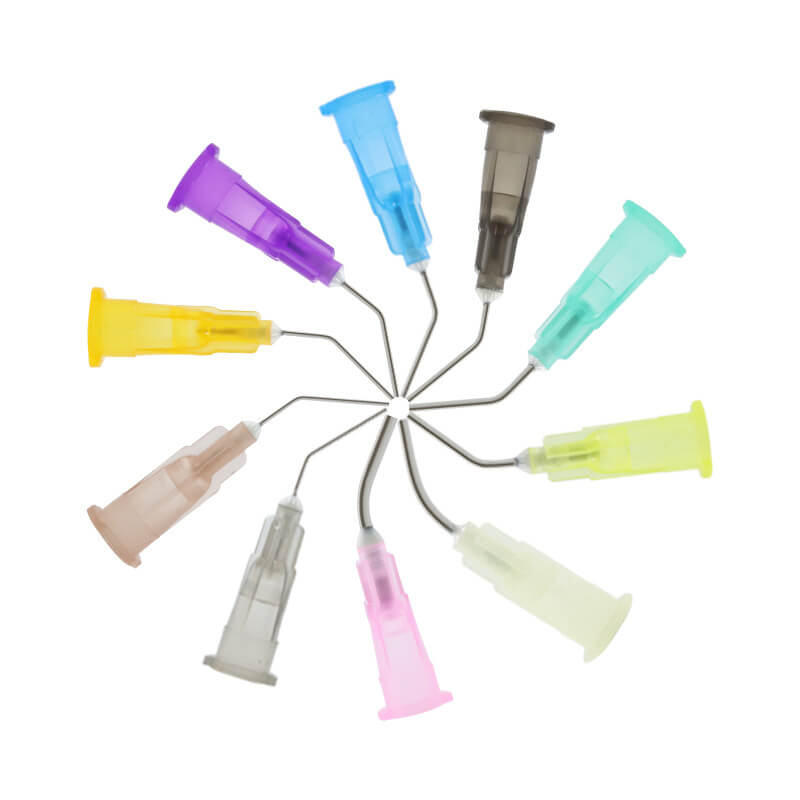

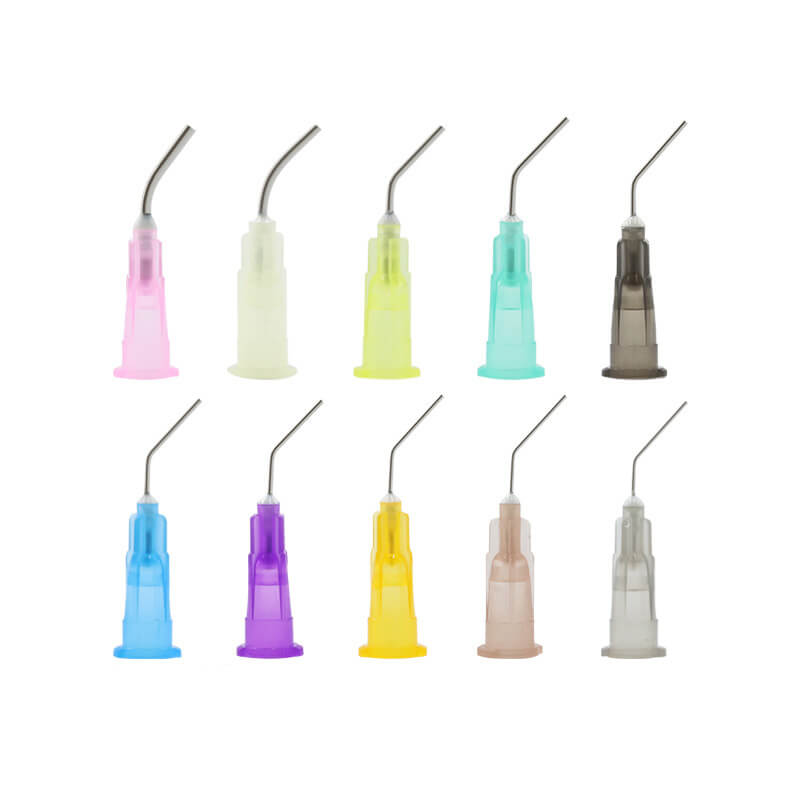

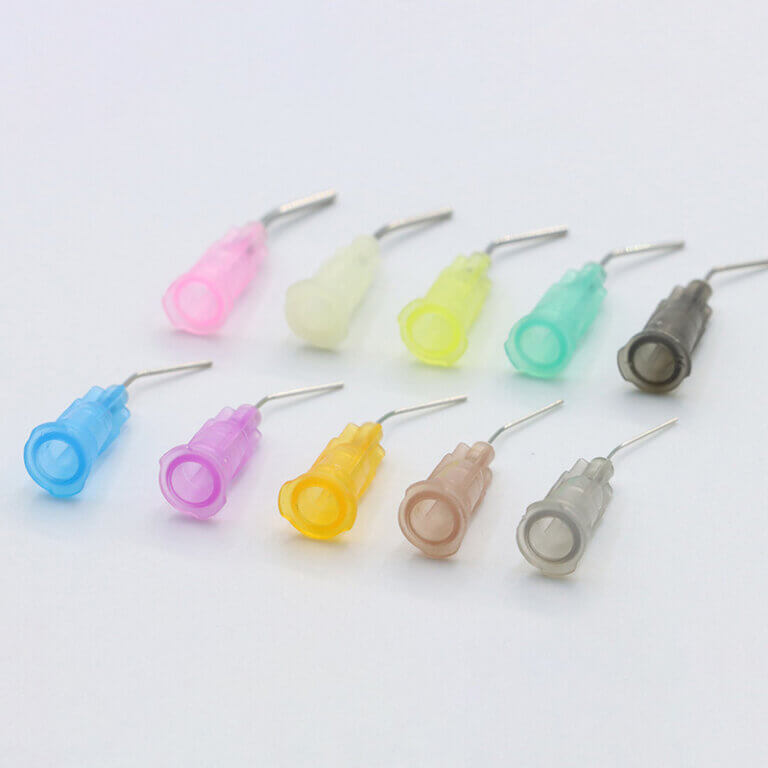

1/2 Inch 13mm 45-Degree Bent Bayonet Dispensing Nozzle
- Durable & Precise – The stainless steel and plastic-steel composite construction ensures longevity and high accuracy, making it ideal for precision dispensing in industrial applications.
- Angled for Precision – Featuring a 45° bent design, this needle allows controlled adhesive flow, making it perfect for applications requiring angled dispensing in electronics, automotive, and medical industries.
Contact us for a price
Speak To A Sticker Doming Machine Specialist

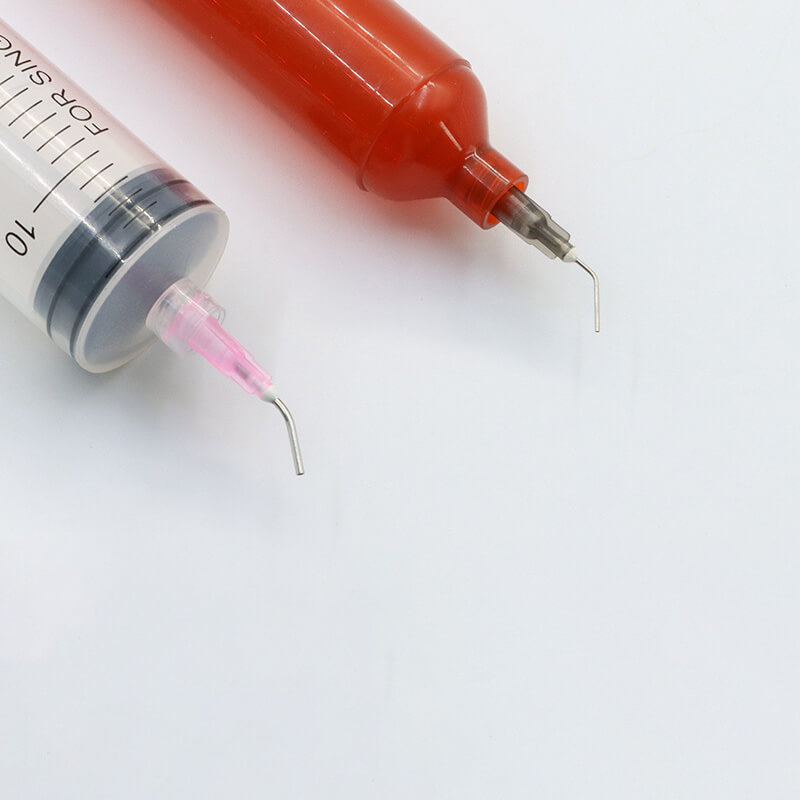

Featuring a precision-engineered tip and threaded design, this dispensing needle offers reliable performance for viscous fluids, ensuring consistent application in high-precision environments.
Size Table of the Dispenser Nozzle:
| Model | Color | Outer Diameter | Inner Diameter | Needle Length |
|---|---|---|---|---|
| 18G | Pink | 1.275mm | 1.025mm | 13mm |
| 19G | Cream | 1.05mm | 0.8mm | 13mm |
| 20G | Yellow | 0.905mm | 0.655mm | 13mm |
| 21G | Green | 0.805mm | 0.555mm | 13mm |
| 22G | Black | 0.705mm | 0.455mm | 13mm |
| 23G | Blue | 0.605mm | 0.375mm | 13mm |
| 24G | Purple | 0.555mm | 0.345mm | 13mm |
| 25G | Orange | 0.505mm | 0.295mm | 13mm |
| 26G | Brown | 0.455mm | 0.255mm | 13mm |
| 27G | Gray | 0.417mm | 0.217mm | 13mm |
Note: The above dimensions are manually measured and may have slight deviations.
