Resin Doming Machine Case Studies
Review DJ771 and SJ4060 machines in real production before deciding which setup deserves a sample test.
The case samples use epoxy resin, with full cure in 15–24 hours at room temperature (approximately 25°C). Recorded machine cycles are specific to each sample setup and do not include curing time.
Multi-Head Label Sheet Doming
Compare two epoxy doming runs using 5 and 3 needles on regular label sheets.
View Production Case →
Mixed-Layout Sticker Positioning
See six 12 × 14.5 cm mixed-design sheets processed with epoxy in about 52 seconds, excluding manual loading and unloading.
View Production Case →

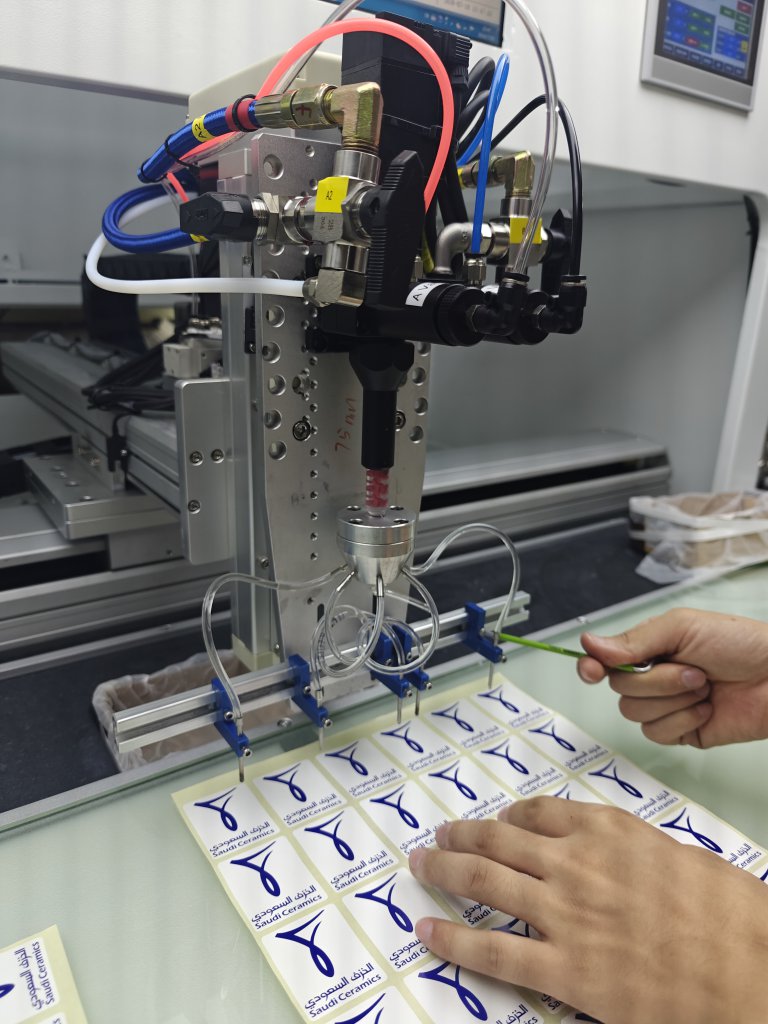

Multi-Needle Doming for Identical Labels
See 20 identical labels processed in about 20 seconds, with first-needle reference and X-axis alignment requirements.
View Production Case →

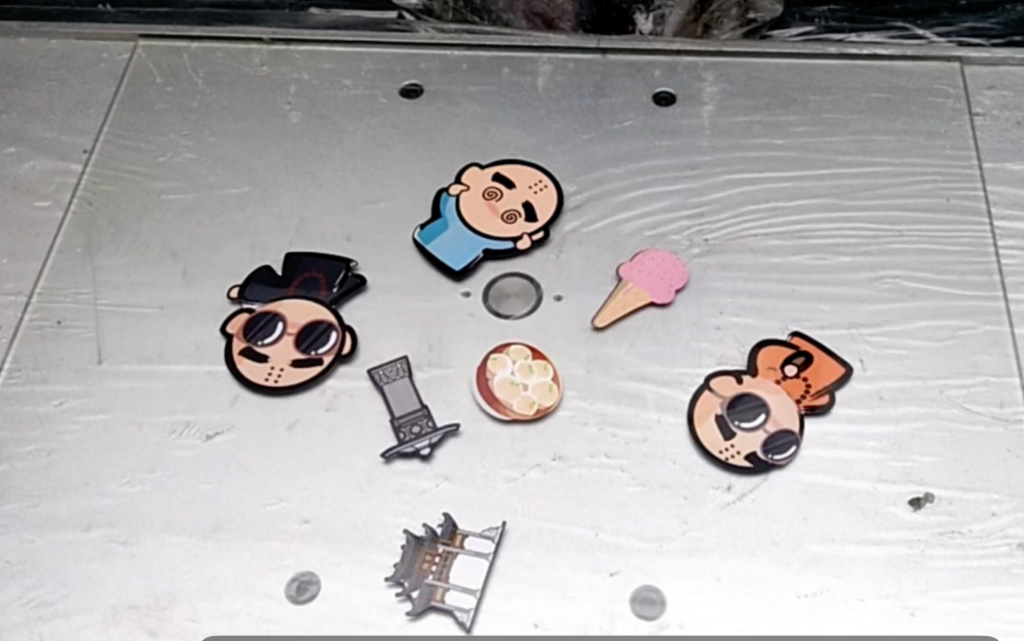

Fridge Magnets and IC Key Cards
Watch seven assorted magnets and a four-piece magnet/card mix processed with vision positioning and epoxy resin.
View Application Demo →
Metal Badges: Random Placement and Fixtures
See randomly placed logo badges, two badge sizes and an aluminum fixture that keeps rear-pin badges level for doming.
View Application Demo →

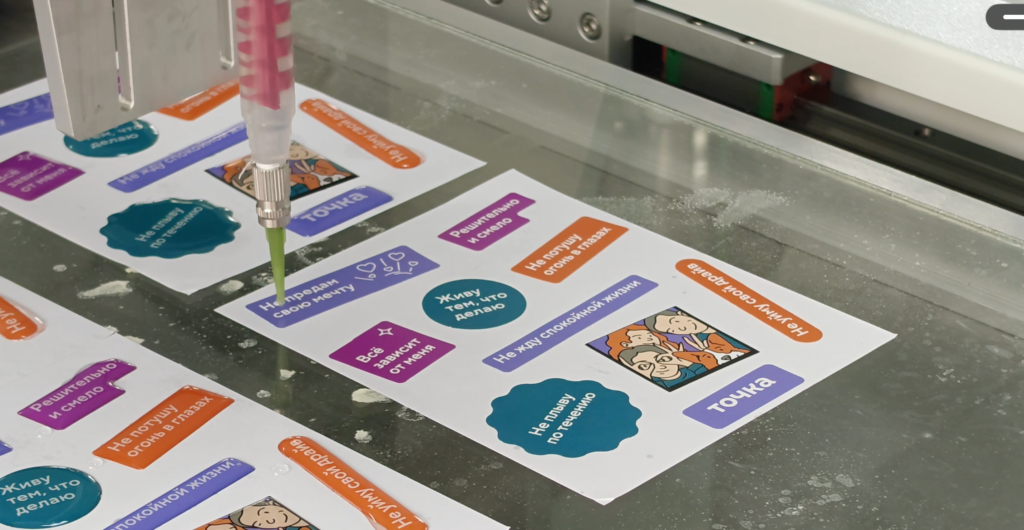

Mixed-Layout Paper Sticker Doming
See epoxy doming on 12 × 14 cm printed coated-paper sheets with a 23-second single-needle program and conditions for multiple needles.
View Production Case →
