Samples / Simple Labels
Semi-Auto Doming Machine
Best for: Sample testing, low-volume orders, simple flat labels and budget-conscious buyers.
- Easy setup
- Good for samples
- Manual loading
Domed Industrial Labels Production & Resin Doming Machine Solutions
Produce durable resin domed industrial labels for equipment ID, product labels, control panels and machinery branding. Match the machine by material, sheet layout, volume, positioning accuracy and use environment before purchase.
Best for

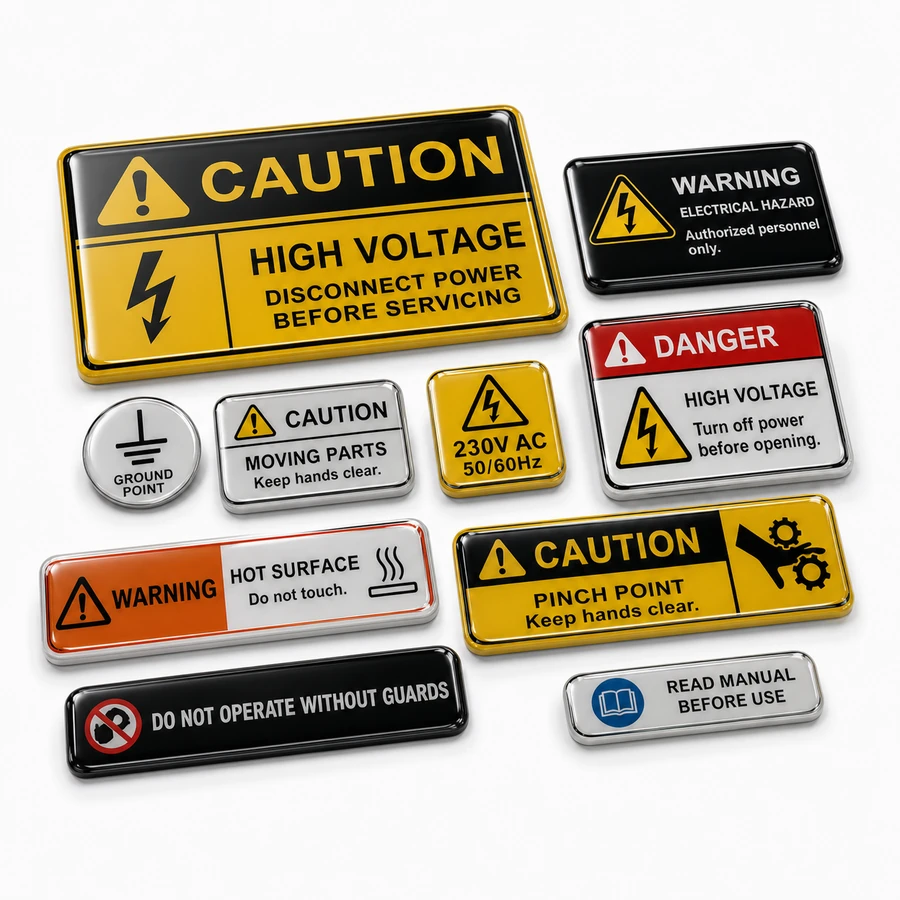

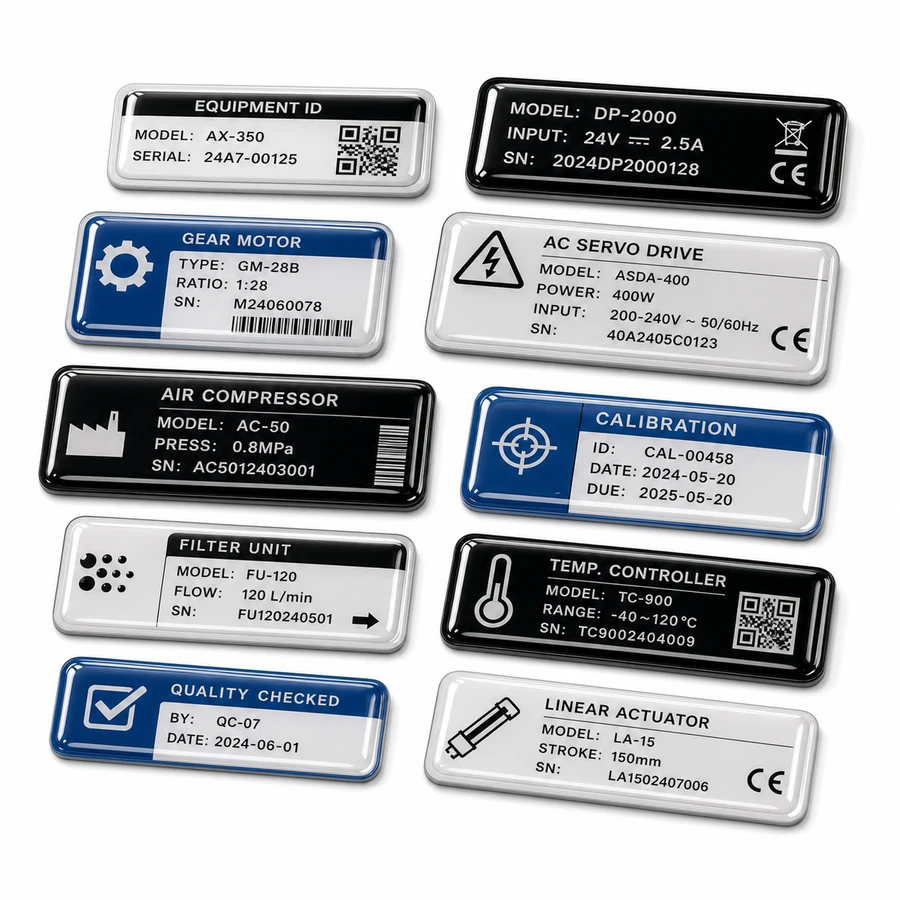

Equipment labels, product ID labels, warning labels, control panel labels, machinery tags, PC/PET labels, metal labels and durable brand labels.
Machine selection
Semi-auto, 3-axis automatic or CCD vision system matched by layout, volume and positioning accuracy
Recommended resin
Epoxy or polyurethane resin matched to substrate, hardness, flexibility, UV exposure and working environment
What Are Domed Industrial Labels?
Domed industrial labels are printed, metal or film labels coated with a clear epoxy or polyurethane resin layer to create a raised 3D surface. The resin improves gloss, protects printed information and gives equipment labels, product ID labels and control panels a more durable finished appearance.
Raised resin layer improves equipment identification, warning visibility and brand recognition
Protects model numbers, warning text, QR codes and serial information from handling wear
Readability, surface coating and use environment should be tested before machine selection
Why Use Resin Doming for Industrial Labels?
Raised resin finishing helps industrial labels stay readable, protected and traceable on equipment, panels and outdoor products.
Readable Equipment ID
Protects model numbers, warning icons, QR codes and serial labels while keeping identification clear.
Print & Coating Protection
Helps protect ink, film laminate and metal label surfaces from handling wear and light chemical contact.

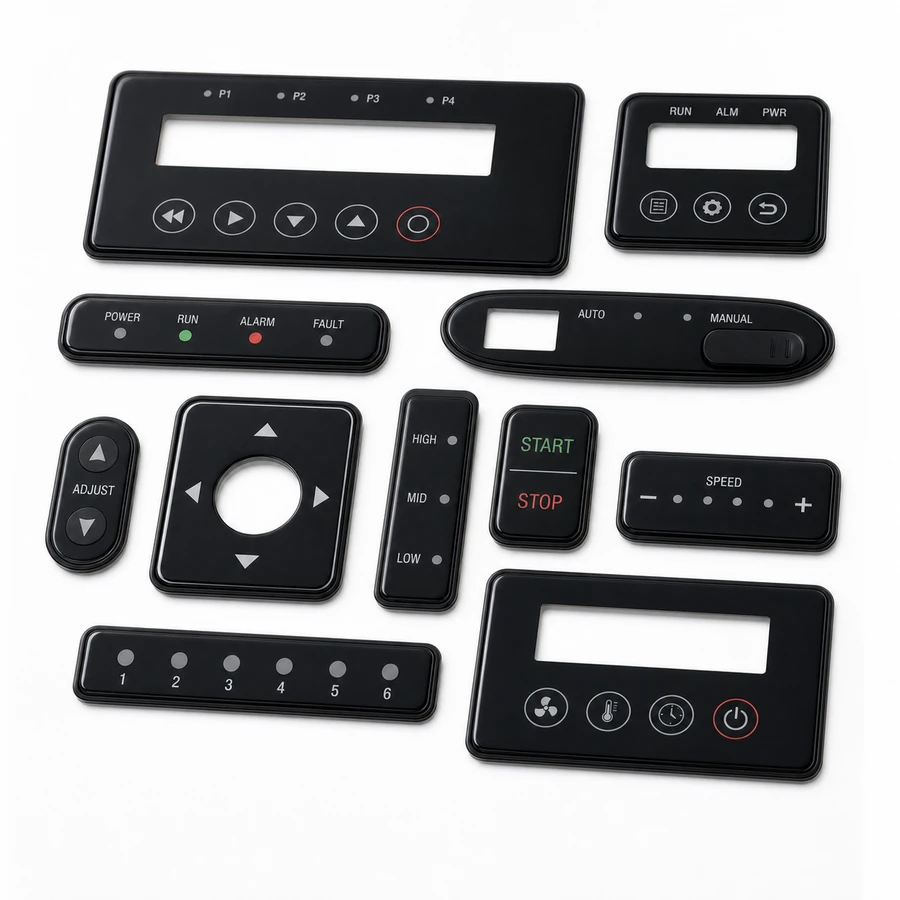

Panel & Machinery Fit
Works for equipment ID labels, control panel labels and machinery tags after surface and adhesion testing.
Environment-Matched Resin
Choose epoxy or PU based on UV, cleaning agents, abrasion, chemical contact and label flexibility.
Production Requirements for Domed Industrial Labels
Key parameters to confirm before starting resin domed industrial label production.
| Requirement | Options / Range | Notes |
|---|---|---|
Label Material | PC, PET, PVC, aluminum, stainless steel, acrylic, ABS or coated films | Surface should be clean, dry and tested for resin adhesion before production. |
Surface Finish | Printed, coated, brushed metal, film-laminated, laser marked or textured | Ink, coating and surface texture may affect adhesion, clarity and final appearance. |
Shape / Layout | Regular sheets, strips, holes, cutouts, mixed labels or free placement | Regular sheets suit 3-axis automation; mixed placement, holes or printed variation may need CCD vision alignment. |
Production Volume | Samples, small batches, repeat orders or high-volume sheets | Volume affects machine automation level, fixture design and dispensing program setup. |
Resin Type | Epoxy resin or polyurethane resin | Choose by hardness, flexibility, UV exposure, chemical contact and use environment. |
Dome Height | Usually 0.5 mm – 4 mm, adjusted by label size and edge design | Higher domes require stable edge control and the right resin viscosity. |
Use Environment | Indoor equipment, appliances, outdoor machinery, tools or branded products | Outdoor, flexible or high-contact labels usually require polyurethane resin and sample aging checks. |
Common Industrial Label Production Challenges
These issues help determine the right resin, fixture, dispensing path and machine level for your industrial label workflow.
Readability Distortion
Small warning text, icons or QR codes can become harder to read if the dome is too high or uneven.
Solution:
Test dome height, resin volume and optical clarity on real printed labels.
Edge Overflow on Narrow Labels
Small text labels, strips and narrow edge designs can overflow if resin volume or viscosity is wrong.
Solution:
Adjust resin volume, viscosity, path speed and edge design before mass production.
Label Movement / Uneven Height
Thin films, flexible labels or unstable fixtures can move during loading and dispensing.
Solution:
Use suitable fixtures, Z-height control and sample tests before batch production.
Poor Adhesion on Coated Surfaces
Brushed metal, film laminates, oils, coatings or textured surfaces can reduce resin bonding.
Solution:
Clean surfaces and test adhesion on the final material, print and coating.
Oil / Chemical Exposure
Equipment labels may face cleaning agents, oil, moisture, UV or temperature changes in real use.
Solution:
Choose resin, substrate and sample aging checks based on the working environment.
Purchase Risk Check
What Can Go Wrong If You Choose the Wrong Domed Industrial Labels Setup?
Industrial labels need clear identification and stable protection. Choosing only by machine price can create readability, adhesion and durability problems when labels are used on equipment, panels or outdoor products.
Risk 01
Wrong resin for harsh environments
Risk Industrial labels may face oil, cleaning, moisture, UV or temperature changes.
Result Glossy labels fail early, yellow, soften or lose protective value.
Risk 02
Poor readability control
Risk Too much resin or uneven dome height can distort small text, warning icons or QR codes.
Result Operators cannot read labels clearly after doming.
Risk 03
Wrong positioning method
Risk Control panel labels, holes and mixed layouts may need CCD vision rather than only fixed-path dispensing.
Result Resin lands off-center and increases rejects on precision labels.
Risk 04
Weak surface preparation
Risk Dust, coating residue or unsuitable ink can reduce resin bonding.
Result Domes peel or show cloudy edges after handling.
Risk 05
No production fixture plan
Risk Thin labels or flexible films can move during loading and dispensing.
Result Inconsistent batches even when the dispensing program is correct.
Best next step: Send the final label substrate, print/coating and use environment so resin choice, positioning method and production fixture can be checked before purchase.
How to Choose the Right Industrial Label Doming Machine & Resin Setup
No single machine fits every industrial label workflow. Match the setup to your material, surface finish, layout repeatability, order volume, dome height and indoor or outdoor use.
Regular Repeat Sheets
3-Axis Automatic Doming Machine
Best for: Repeatable sheets, stable orders, regular layouts and growing production volume.
- High efficiency
- Stable dispensing
- Best for regular sheets
Mixed / Precision Labels
CCD Vision-Guided Doming Machine
Best for: mixed label layouts, holes, cutouts, printed sheet variation, QR/warning labels and high-precision positioning.
- Vision alignment
- Higher accuracy
- Best for irregular layouts
Recommended Resin Setup
Epoxy Resin
- Excellent clarity and surface hardness
- Good for rigid indoor labels and product ID tags
- Best where high UV exposure or flexibility is not required
- Typical curing: 12–24 hours at 25°C
Polyurethane Resin
- Good flexibility and impact resistance
- Better for outdoor, flexible or high-contact labels
- Excellent UV resistance for machinery and outdoor branding
- Typical curing: 8–12 hours at 25°C
Resin selection depends on label material, surface finish, required hardness, flexibility, UV resistance, chemical contact and expected working environment.
Domed Industrial Label Machine + Resin Selection Table
Use this table as a starting point. Final machine and resin selection should be confirmed with sample testing.
| Label Type / Layout | Best Fit / Trigger | Recommended Machine | Recommended Resin | Key Benefit |
|---|---|---|---|---|
| Simple Flat Industrial Labels | Samples, small batches, basic flat sheets | Semi-Auto Doming Machine | Epoxy or polyurethane resin | Low entry cost and flexible sample testing |
| Regular Sheet Labels | Stable repeat orders and aligned layouts | 3-Axis Automatic Doming Machine | Epoxy or polyurethane resin | Stable output and higher production efficiency |
| Mixed / Warning / Control Panel Labels | Holes, cutouts, QR codes, printed variation or high positioning risk | CCD Vision-Guided Doming Machine | PU or matched resin by environment | Better positioning accuracy and fewer readability defects |
Sample Testing Workflow (Before You Buy)
Test your real industrial labels first so adhesion, clarity, dome height and machine setup are confirmed before purchase.
1
Send industrial label samples
Provide label samples, drawings, material, print/coating and use environment.
2
Adhesion & resin compatibility test
We test resin clarity, adhesion, curing and surface finish on your samples.
3
Dome height & edge control
We fine-tune resin volume and dispensing path for your target dome height.
4
Video / report + quote
Receive test video, report, and machine + resin recommendation.
What to Provide for a Quote
What To Provide?
- Industrial label samples or drawings
- Label size and thickness
- Label material and surface finish
- Target dome height
- Monthly production volume
- Indoor, outdoor or chemical exposure
- Current labeling or doming process
- Special requirements
Industrial Label Examples

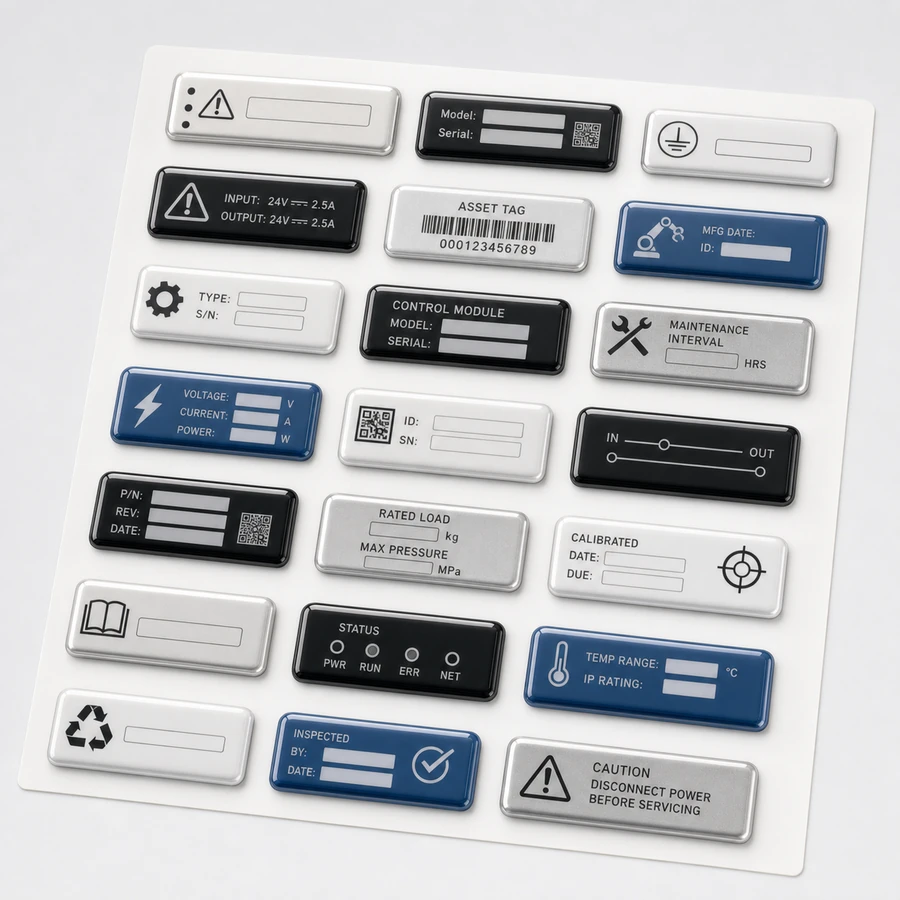

Regular Sheet Labels
Aligned sheets, uniform label shapes
Mixed Labels / Holes / Cutouts
Different label shapes, holes and placements
*Your details will be kept strictly confidential with us.
FAQ About Domed Industrial Label Production
Which resin is better for domed industrial labels: epoxy or polyurethane?
It depends on the label material and use environment. Epoxy resin gives high clarity and a harder surface for rigid indoor labels. Polyurethane resin is better for outdoor machinery, flexible labels, higher impact resistance and UV exposure. We recommend sample testing on your real printed labels before confirming resin.
Can resin domed industrial labels be used outdoors?
Yes, but the resin, substrate and printed surface must be matched correctly. Outdoor labels usually need polyurethane resin, UV-resistant printing and sample aging checks. Send your material and use environment so we can test adhesion, clarity and dome stability.
What label materials can be used for resin doming?
Common materials include PC, PET, PVC, acrylic, ABS, aluminum, stainless steel and coated films. The key is surface condition: ink, coating, lamination, brushed metal and oils can affect adhesion, so real-sample testing is important.
Which doming machine should I choose for industrial labels?
The right machine depends on layout and volume. Semi-auto machines suit samples and small batches. A 3-axis automatic doming machine suits regular sheets and stable repeat orders. CCD vision-guided machines are better for mixed layouts, holes, cutouts, printed sheet variation or high-precision positioning.
Do you provide sample testing before purchase?
Yes. Send your industrial label samples, material, surface finish, size, target dome height and use environment. We test resin compatibility, adhesion, dome height and edge control, then provide a test video, report and machine + resin recommendation.
